Polarus 3 Solution

March 27, 2018

Overview Designed to provide multiple solutions for fractures of the humerus, the Polarus 3 Solution provides plate and nail options in one comprehensive system. The system includes a Posterior Plate for capturing posterior greater tuberosity fragments as well as a Standard Plate for less complex fractures. Nail options include both a Proximal and a Long Nail. Key Features Plate and …

Overview

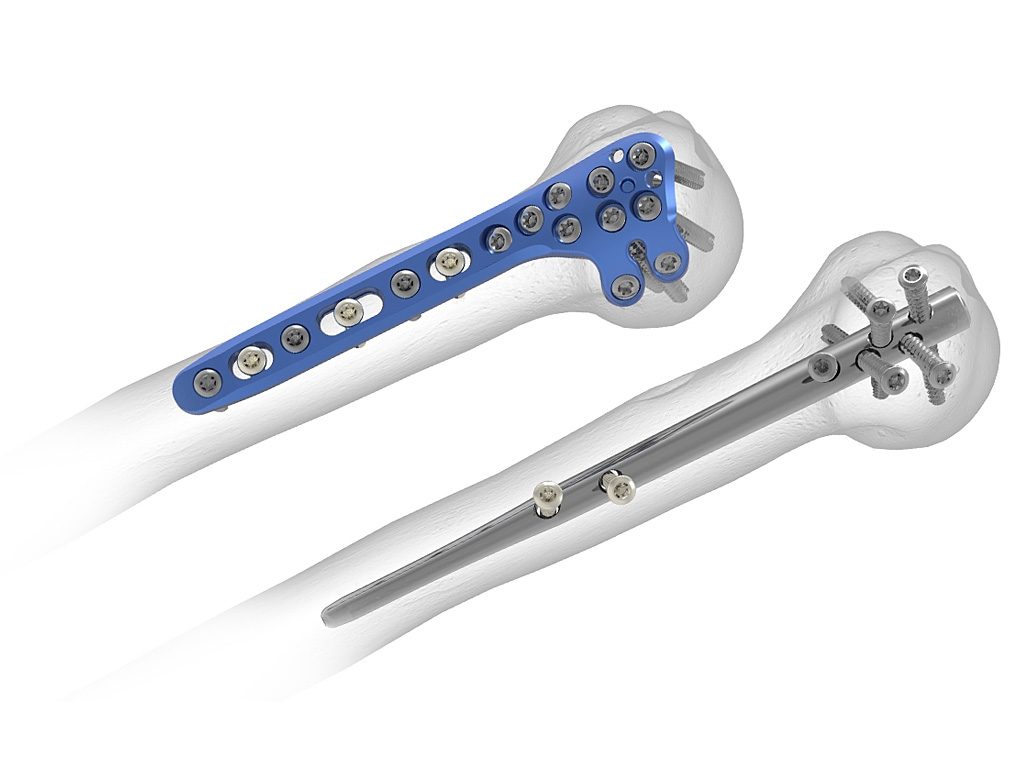

Designed to provide multiple solutions for fractures of the humerus, the Polarus 3 Solution provides plate and nail options in one comprehensive system. The system includes a Posterior Plate for capturing posterior greater tuberosity fragments as well as a Standard Plate for less complex fractures. Nail options include both a Proximal and a Long Nail.


Key Features

  • Plate and Nail Options: Polarus 3 offers a comprehensive plate solution, as well as short and long nails.
  • Plate: Lateral Plate with Posterior Tab Option: Two bendable posterior tabs and buttress screw trajectories provide dedicated targeting to the calcar region.
  • Plate: Medial Buttress Support: Three targeted calcar screws are designed to help prevent the humeral head from collapsing into varus.
  • Nail: A More Medial Entry: A four-degree curvature in the nail allows for a more medial entry that helps preserve the rotator cuff and facilitates insertion.
  • Nail: Proximal Locking Mechanism: Pre-assembled PEEK insert is designed to prevent screw back-out by creating proximal locking screw friction.

Standard and Posterior Plates

The Polarus 3 Solution offers enhanced features in both plate and instrumentation design. Polarus 3 offers Posterior Plates to capture greater tuberosity fragments, as well as Standard Plates for less complex fractures in the humeral head. Both plate families offer multiple suture holes, medial calcar support holes, and a variety of lengths. Both plate families offer multiple suture holes and medial calcar support holes. Standard Plate lengths range from 94 mm to 275 mm; Posterior Plate is 94 mm or 115 mm.

Additional Features Include:

  • Lower plate placement designed to avoid subacromial impingement.
  • Left/right specific plates are anatomically precontoured.
  • Low-profile plate design allows the plate to be as thin as possible while maintaining strength and allowing screw heads to sit flush with the surface of the plate.
  • Converging and diverging screw patterns are intended to provide different options in screw placement as well as multiple points of fixation.
  • Suture undercuts are provided for ease of passing suture needles underneath the plate.

Proximal and Long Nails

Building on the success of the original Polarus and Polarus Plus Nail, the Polarus 3 Solution incorporates existing nail and instrumentation features such as radiolucent targeting guides, tapered profiles, and axillary nerve avoidance in addition to several new features:

  • The nails feature a 4 degree lateral bend and are left/right specific (proximal nail only) to fit patient anatomy. The
  • Proximal Nail is 150 mm long. The Long Nail ranges from 150 mm to 280 mm.
  • Polarus 3 nail screw patterns are designed to avoid the axillary nerve.
  • Nail insertion point is designed to minimize rotator cuff disruption.
  • Fully cannulated nails and instrumentation allow use of a guide wire to ease installation.
  • Nails feature a tapered tip to minimize stress risers.
  • Radiolucent targeting guides provided to facilitate insertion of proximal screws (Long Nail) and proximal and distal screws (Proximal Nail).
  • Long nails feature a slotted hole in the AP view for additional reduction options.
  • Pre-assembled PEEK insert to create proximal locking screw friction.
  • Cannulas are designed to lock and unlock for stability within the targeting guide.
  • Instrumentation is included for removal, and an end cap is included to help prevent bony in-growth.

Low-Profile Screws

Low-profile screws are designed to reduce soft tissue irritation. The hexalobe drive interface is designed to reduce the possibility of stripping the screw.

4.3 mm low-profile hexalobe screws function as locking screws and may be used in any hole of the Polarus 3 plate, as well the proximal portion of the nail.

3.5 mm nonlocking low-profile hexalobe screws may be used in any hole of the Polarus 3 plate, as well as the distal portion of the nail.


Innovative Instrumentation

The system includes both a traditional sharp drill and a blunt drill. The blunt drill can be used to avoid perforation of the joint surface at the far cortex.

Other instrumentation designed to streamline the surgical experience includes radiolucent carbon fiber retractors, a low-profile targeting guide with suture cleat, and a locking cannula to enhance targeting stability and assist with fracture reduction.
